Equipment Rental and Sales
Advanced Lines plays a crucial role in supporting the Oil and Gas industry by
supplying a wide range of equipment to our esteemed clients.
supplying a wide range of equipment to our esteemed clients.
ACID STORAGE TANK, SKID MOUNTED - 2000USG - OFFSHORE (ACID CARBOY)
Features & Specification
Available Pumps:
- Model: PC 2000G Offshore Acid Tank
- Capacity: 2000G (7570KL) +/-2%
- Maximum Gross Weight: 14,000kgs.
- Temperature: 40 Deg C Max
- Pad Eyes: 32mm – 4Nos at 45 Deg Angle
- Frame Design: As Per DNV 2.7-1 – Offshore Acid Tank Container
Each tank is subjected to LRCSS and PC Examination and authorized inspector from sourcing of materials to final dispatch of the container.
ACID STORAGE TANK, SKID MOUNTED - 5000USG (DNV)
Features & Specification
- Type: Offshore Container
- Capacity: 5,000 Gallon +/-2% (18, 925Liters)
- Max. Gross Weight: 25,000kgs.
- Cylindrical Length: 4,750mm
- Max. Temperature (Tank): 45 Degree C (for chemical filling with FRP lining)
- Hydro Test Pressure: 1.36 Barg (20psi)
- Frame Type: DNVGL-ST-E271
- Material: FRP Lining for CS Above Ground Tanks
Each tank is subjected to DNV and ALG examination and authorized inspector from sourcing of materials to final dispatch of the container.
ACID TRANSPORTER, TRAILER MOUNTED - 8000 USG
Features & Specification
- The Acid Transport Trailer is a 8000 USG, Three (3) Compartment unit suitable for use with HCL up to a concentration of 32% designed for use in all land-based operations with 3 x 12T Axle Air Suspension with ABS on 2 Axle.
- The tank incorporates a Derakane lining specifically formulated for high acid resistance and longevity. Further, should the lining suffer any physical damage, repairs are relatively simple. Built as a self-contained trailer unit, the tank can be transported and placed on site easily without the requirement for any specialist lifting equipment.
ACID TRANSPORTER, TRAILER MOUNTED - 6500USG
Features & Specification
Tank: ASTM A36/Equivalent
Thickness: Dished end & partition Dishes: 833(NOM) and Shell 6mm
Compartment
- Two (2) Compartments
- Each Compartment has a manway on top
- Fill line 4 inch and discharge 4 inch with suitable BFV & Fig 207 Union
- With Vacuum Relief Valve for each compartment
- With UPVC dipstick for each compartment
- With working lights and rollover protection on the top
- With side bumpers as per SASO Regulation
- With Water & Safety Shower
Size:
- Overall Length: 11109 MM
- Overall Width: 2527 MM
- Overall Height: 4158 MM
500BBL STORAGE TANK PRESURRIZED 50PSI W/ CRASH FRAME, DNV, U-STAMP
Features & Specification
- Capacity: 500BBL
- Design Pressure: 50PSIG
- Design Temperature: Max:121 / MIN-28DEG C
- MDMT: -28.89 @54 PSIG
- Test Pressure: 75 PSI
- Mounting: Saddle Mounted
- Vessel Dimensions: 3.1M ID x 10M T/T
- Shell Thickness: 10mm
- Dish Thickness: 10.7mm (min / 14mm (nom)
FRAC TANK, TRAILER MOUNTED (ACID LINED) - 500BBL
Features & Specification
- Material: A36 / Equivalent for Tank & S275 Jr / Equivalent for structured steel.
- Thickness: Shell & Roof are 6mm, End Plates are 8mm
- Outlet with Butterfly Valve to be connected to 10” Manifold with 4” Outlet Butterfly Valves and 4 Nos. of FIG 206 Union
- 4” Fill Line with Butterfly Valve and 2 Nos. of FIG 206 union
- 4” Bottom Drain Line with Butterfly Valve and 1 No. of FIG 206 union
- 4” Overflow / Vent Line PVC built
- Hinged type manway. 1 at top and 1 at the side
- Foldable Handrails are the top walkway area
FRAC TANK, TRAILER MOUNTED (WATER/SLURRY) - 500BBL
Features & Specification
- Tank: All steel electric welded construction from 6 mm steel plate, ASTM A-36
- Shape: Rectangular with Round bottom
- Tank Dimension: L=12.000 mtr x W=2.500 mtr x H=2.9 mtr
- Manhole: 1x20’’ Fabricated Hinged sealed manway hatch cover, and wing, nuts for easy locking arrangement.
VERTICAL SURGE TANK 200BBL - 250PSI
Features & Specification
- MAXP: 250Psig @ 200F/235Psig @ 250F
- Design Temperature: 20F to 250F
- Corrosion Allowance: 3mm (Vessel)/ 1.6mm(piping)
- Shell: SA516M GR.485 (GR.70)(N)
- Head: SA516M GR.485 (GR.70)(N)
- MGM: 22,000KG
- Tare: 18,500KG
- Pay Load: 35,000KG

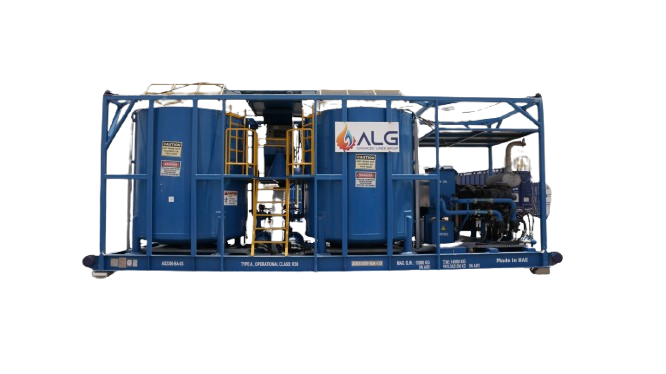

BATCH MIXER, SKID MOUNTED (ACID USED) - 1400BBL
Features & Specification
- Engine: Caterpillar C9 300BHP Diesel Engine
- Hydraulic Motors: 2 x High Torque Hydraulic Motors for Agitators
- Tanks: 2 x 70BBl Mild Steel Tanks usable volume for mixing 60 – 65 per tank
- Anti-Acid Coating: Derekane anti acid coating up to 32% HCL for tanks, all piping, agitators and pumps
- Controls: Mounted in a control panel with air strut supported closing lid
BATCH MIXER, TRAILER MOUNTED (ACID USED) - 1400BBL
Features & Specification
- The unit is equipped with a Cummins QSB6.7, 6.7L 260hp electronic engine coupled to John Deere. Funk PTO to drive the hydraulic pumps. The engine is fitted with an air compressor, starter, alternator, exhaust muffler The engine ECU is configured to run at a maximum of 2200rpm. Engine is water cooled the radiator mounted in-front of the engine and the belt driven fan.
BATCH MIXER, TRAILER MOUNTED (ACID USED) - 1400BBL
Features & Specification
- Trailer: Length = 12.5m Width = 3.0m Height = max 4.75m Weight = Approx. 24-25ton
- PTO: John Deere Funk 2800 series (USA) double hydraulic pump drive
- Hydraulic Pumps: Two (2) Veljan hydraulic pumps
- C-Pumps: Two (2) Better Drilling 6” x 5” Hydraulically driven C-pumps with the Volute, stuffing box and impeller in Stainless steel 316
- Tanks: Two (2) 100BBL vertical cylindrical tanks made from mild steel with a conical bottom
- Mixing System: Custom jet mixing with hydraulically driven 5 blade paddles in batch mixing tanks
- Low pressure piping: Up to 150PSI
- Control System: Control platform and control panel.
- Valves: Acid resistant butterfly valves.
500BBL CHEMICAL MIXING TANK WITH 2 C-PUMPS AND HOOPER
Features & Specification
- Design Temperature:0 Deg F to 55 Deg F
- Tank Internal Coating: Glass Flake Epoxy (Red Colour)
- Size: L -15.3M X W- 2.6M X H 3 M
- No. of Agitator: 3
- Max Gross Weight: 15 Tons (Approx)
- Inlet Line Header: 2 x 6”, 150 Class SORF with 6x Butterfly Valves
- Recirculation Line: 1 x 6”, 150 Class SORF with 1x Butterfly Valves
- Outlet Line: 2 x 8”, 150 Class SORF with 4x Butterfly Valves
500BBL FRAC TANK, SKID, OPEN TOP WITH 3 AGITATORS
Features & Specification
- Design Temperature:0 Deg F to 55 Deg F
- Tank Internal Coating: Glass Flake Epoxy (Red Colour)
- Size: L -12M X W- 2.6M X H 3 M
- No. of Agitator: 3
- Max Gross Weight: 13.1 Tons
- Inlet Line Header: 2 x 6”, 150 Class SORF with 6x Butterfly Valves
- Recirculation Line: 1 x 6”, 150 Class SORF with 1x Butterfly Valves
- Outlet Line: 2 x 8”, 150 Class SORF with 4x Butterfly Valves
500BBL FRAC TANK, TRAILER, CLOSED TOP WITH 3 AGITATORS
Features & Specification
- Capacity: 500 BBL (79500-Liter Tank)
- Tank: All steel electric welded construction from 6mm steel plate; ASTM A-36
- Tank Dimension: L=12 mtr x W=2.45mtr x H=2.5mtr
- Roof Plate: 6mm thk
- Bottom Plate/End Plate: 8mm thk
- Partition Plate: 8mm thk.
TRAILER MOUNTED TWIN TRIPLEX PUMP
Features & Specification
- A Control Cabin will be mounted towards the rear of the Trailer in between the Displacement Tanks and the High-Pressure Pumps
- An Operators Platform will allow access to the Control Cabin and the Displacement Tank.
- The Displacement Tank will be mounted directly behind the Control Cabin to facilitate operator access and line of sight from controls.
- The two Unit Power Packages will be mounted in a side-by-side configuration at the front of the Trailer lower deck with the drivelines toward the rear of the Unit.
- The High-Pressure Pumps will be direct driven from the Power Packages and be mounted at the rear of the Unit.
- The High- and Low-Pressure Manifolds and Piping will be integrated within the Unit for accessibility and minimal flow restrictions. Piping will discharge at the rear of the Trailer.
- Good access to solenoid valves and filters and dipsticks
- Drain ports and loading aperture for oil to outside (good access)
CHEMICAL INJECTION PUMP - DHDA66
Features & Specification
Air operated, high-flow, double-acting hydraulic pumps for pressure testing, chemical injection, and hydraulic power.
- Infinitely variable output pressure and flow
- Holds static pressure without generating heat or consuming power.
- Standard models are suitable for oil or water applications.
- Well proven and trouble-free operation
- Designed for ease of maintenance.
- Low-cost servicing
- Robust Construction
WILDEN PUMP, SKID MOUNTED 2'' (ACID)
Features & Specification
- Maximum Fluid Working Pressure: 8.4bar
- Air Pressure Operating Range: 1.4-8.4bar
- Maximum Air Consumption: 4.9 N m3/min
- Air Consumption at 4,9bar/227l/min: 1.68 N m3/min
- Maximum Free Flow Delivery: 568 l/min
WILDEN PUMP, SKID MOUNTED 3'' (CHEMICAL)
Features & Specification
- Maximum Fluid Working Pressure (Aluminum or Stainless): 0.86MPa, 8.6 bar
- Air Pressure Operating Range (Aluminum or Stainless): 0.14-0.86 MPa, 1.4-8.6 bar
- Air Consumption (All Pumps): 2.5 m3 /min at 4.8 bar, 379 lpm
WILDEN PUMP, SKID MOUNTED 2'' (CHEMICAL)
Features & Specification
- Maximum Fluid Working Pressure: 120 psi (0.8 MPa, 8 bar)
- Air Pressure Operating Range: 20- 120 psi (0.14-0.8 MPa, 1.4-8bar)
- Maximum Air Consumption: 175 scfm
- Air Consumption at 70psi/60gpm: 60scfm
- Maximum Free Flow Delivery: 150gpm
C-PUMP, SKID MOUNTED (ACID LINED) - 6x5x11'' (CP-1)
Features & Specification
- Transfer C-pump unit for acid operations. The unit consists of a heavy-duty skid with crash frame and roof. Mounted on the Skid is a Deutz F6L912 engine coupled to a Double life 6”x5” x 11” C-pump. The design takes into consideration the ease of operation of the unit as well as the ease of accessibility of components and their maintenance. Highly durable components are selected to make the unit last.
C-PUMP, SKID MOUNTED (ACID LINED) - 6x5x11'' (CP-2)
Features & Specification
- This offer is for one Transfer Acid C-pump unit
- The unit consists of a heavy-duty skid with crash frame and roof. Mounted on the Skid is a caterpillar C4.4 engine coupled to a Double life 5”x6” x 11 C-pump.
- The design takes into consideration the ease of operation of the unit as well as the ease of accessibility of components and their maintenance. Highly durable components are selected to make the unit last.
C-PUMP, SKID MOUNTED (ACID LINED) - 6x5x14''
Features & Specification
- This offer is for one Transfer Acid C-pump unit
- The unit consists of a heavy-duty skid with crash frame and roof. Mounted on the Skid is a caterpillar C4.4 engine coupled to a Double life 5”x6”x14” C-pump.
- The design takes into consideration the ease of operation of the unit as well as the ease of accessibility of components and their maintenance. Highly durable components are selected to make the unit last.
C-PUMP, SKID MOUNTED (ACID LINED) - 10x12'' (CP-1)
Features & Specification
- Engine: One (1) New Dongfeng Cummins QSZ13-C450 – 450 bhp @ 1900 rpm
- PTO: One (1) New mechanical operated PTO to disengage engine and C-Pump.
- Centrifugal Pump: One (1) New MCM 12 x 10 x 23 pump with 21inch impeller.
- Manifold: Necessary suction and discharge manifold with 4inch and 8inch fig 207 suction and 4inch and 10inch fig 207 discharge manifold.
- Diesel Tank: Mild Steel Diesel Tank
C-PUMP, SKID MOUNTED (ACID LINED) - 10x12'' (CP-2)
Features & Specification
- Engine: One (1) New Cummins QSB 6.7 (260HP) @ 2300rpm industrial engine.
- PTO: One (1) New hand lever operated PTO to disengage engine and C-Pump.
- Centrifugal Pump: One (1) New Gardner Denver 10 x 12 C-Pump.
- Manifolds: necessary suction and discharge manifold
- Diesel Tank: Mild steel diesel tank integrated into skid.
C-PUMP, SKID MOUNTED (ACID LINED) - 8x6x14
Features & Specification
- Engine: One (1) New Dongfeng Cummins QSB4.5-C160D 160BHP @ 2200RPM Industrial Engine
- PTO: One (1) New WPT power corp. hand lever operated PTO to disengage engine and C-pump
- Centrifugal Pump: One (1) New Better Drilling 8’’x6’’x14’’ C-Pump with 14’’ Impeller
- Manifold System: Three (3) 4’’ Discharge and three (3) 4’’ suction ports internally coated with Derakane 411.45
- Diesel Tank: Mild steel Diesel Tank
MULTISTAGE PUMP 450 M3/HR @ 32BAR
Features & Specification
- Multistage Centrifugal Pump package coupled with a diesel engine, designed to deliver 450 m3/h at 32 bar pressure. Engineered for demanding field operations and is widely used in:
- Pipeline flooding
- Pipeline testing
- Pipeline pigging/flushing
- Other high pressure applications
- Max Flow: 600m3/h
- Min. Flow: 140 m3/h
- Min Pressure: 20 bar
FILTRATION UNIT, TWIN POD
Features & Specification
- Cartridge: 50 Cartridges per vessel, 40;; (101.6cm) long
- Skid: Heavy-duty carbon steel crash frame with forklift pockets and 4 lifting eyes.
- Vessel: Carbon steel material suitable for non-hazardous fluid with drain and PRV.
- Piping, Valves and Connection: 4’’ CS piping, 4’’ Butterfly valves and 4’’ Hammer union weco connection.
- PRV and Pressure Gauges: PRV set at 10bar on each vessel, 11Bar Pressure gauge on inlet and outlet.
- Max Working Pressure: 10 Bar (145psi)
- Max. Working Temperature: 70C (185F)
- Maximum Working Flow: Recommended Flow 12 BBL/min (120 m³/min)
- Skid Dimensions: 2,000 x 1,000 x 2,100 mm
- Maximum Gross Weight: 2,000kgs.
NITROGEN TANK, SKID MOUNTED - 3000USG
Features & Specification
- Dimensions: 3296mm x 2202mm
- Capacity: 11,258 Liters
- Material: SA240 TP304
- Minimum Thickness: 5mm x 6.4mm
- Actual Thickness: 5mm x 7.4mm
- Required Equivalent Thickness: 3.11mm
- Leak test Pressure: 3.1 Bar(g)
- Pressure Range: -1 Bar(g) to +3.1 Bar(g)
- Design Temperature Range: -196 C to +20C
NITROGEN TANK, SKID MOUNTED - 5000USG
Features & Specification
- UN 1977 Nitrogen: 11,528kg (payload max holding)
- UN 1073 Oxygen: 18,090kg (payload max holding)
- UN 1951 Argon: 20,259kg (payload max holding)
- UN 2201 LN20: 20,351kg (payload max holding)
- UN 2187 LC02 (10-22Bar): 21,323kg (payload max holding)
NITROGEN BULKER, TRAILER MOUNTED - 7000USG
Features & Specification
- Design Pressure: 4barg
- Design Temperature: -196C / +37C
- Capacity: 34,000litres (8,981USG)
- Tare Weight: 9,500kg
- Inner Tank Material: 1.4301/1.4307 Stainless Steel
- Outer Vessel Material: S355J2+N Carbon Steel
- Piping Material: 304 / 304L stainless Steel
- Insulation: Multilayer Super Ins. + Vacuum
- Transfer Pump: Cryostar GBS 155 Centrifugal Transfer Pump
- Hose: 1 unit 5-meter Stainless Steel Flexible Hose
NITROGEN PUMP - 180K - OPEN FRAMED (NP-1)
Features & Specification
- Design Pressure: 4barg
- Design Temperature: -196C / +37C
- Capacity: 34,000litres (8,981USG)
- Tare Weight: 9,500kg
- Inner Tank Material: 1.4301/1.4307 Stainless Steel
- Outer Vessel Material: S355J2+N Carbon Steel
- Piping Material: 304 / 304L stainless Steel
- Insulation: Multilayer Super Ins. + Vacuum
- Transfer Pump: Cryostar GBS 155 Centrifugal Transfer Pump
- Hose: 1 unit 5-meter Stainless Steel Flexible Hose
NITROGEN PUMP - 180K - OPEN FRAMED (NP-2)
Features & Specification
- Hydraulic pump power and liquid nitrogen heat are supplied via the diesel engine power pack.
- The system converts heat energy into the coolant system to obtain heat for the liquid nitrogen vaporization process.
- The liquid nitrogen is pressurized by the reciprocating pistons of the triplex pump to the required downstream pressure; the high-pressure liquid nitrogen then flows through the nitrogen vaporizer and is vaporized to gaseous nitrogen.
- The vaporizer coolant system and discharge temperature should be maintained by the pump operator at typical levels of 60°C and 20°C.
ATMOSPHERIC VAPORIZER 3200 NM3/HR N2
Features & Specification
- Manufacturer: 3A Cryogenic FZE
- Type: Vertical
- Fluid: Nitrogen
- Capacity: 3200 Nm3 /Hr
- Operating Inlet Temperature: -196 to +65 Deg Centigrade
- Operating Outlet Temperature: 30 Deg C or below the atmospheric Temp
- Relative Humidity: 90%
- Operating Inlet Pressure: 40 Bar
- Hydraulic Test Pressure: 60 Bar
- Design Pressure: 44 bar
- Hydraulic Test Pressure: 60 Bar
- Skid Frame: 100 x 100 x 5 mm sq. tube & 80 x 45mm C channel 200 x 100 Forklift Pocket
- Dimensions: 6050 x 2440 x 3200
OFFICE & MAJLIS CABIN, TRAILER MOUNTED, M1 (0004)
Features & Specification
- Dimensions: 9.26 x 3.60 x 2.7 (L x W x H)
- Cabin:
- 2 rooms with 1 Toilet
- with built-in niche for AC Compressor
- with built-in niche for AC Compressor
- with AC
- with built-in escape hatch
- External wall: 75 mm thick sandwich panel
- Internal wall: 50 mm thick sandwich panel
- Equipped with built-in water/sewage tanks, generator with diesel tank
OFFSHORE 20FT. A60 PRESURRIZED CABIN
Features & Specification
- 20FT Office Unit: Size: 6.048m x 2.438m x 2.591m (L x W x H)
- Structural Rating: DNV 2.7-1
- Hazardous Area Classification: Zone 1 as per DNV 2.7-2
- Fire Rating: A60 and in compliance with SOLAS/IMO regulatory requirements
- Framework Design Temperature: -20 Deg C to +50 Deg C
- Lifting Set: 1 set of Sling Wire Rope Steel/Galvanized 4 leg, comes with master link assembly, legs ending in thimble eye.
- Window: 2 No. A60 fire rated with protective steel grille - Size: 1000mm x 700mm (WxH)
- Door: 1 No A60 fire rated – Size: 700mm x 2050mm
- Emergency Exit: 1 No A60 fire rated - Size: 800mm x 800mm
- Airlock: Included to meet Zone 1 requirements
CHEMICAL SHELTER
Features & Specification
- Size: 20FT Chemical Shelter (One side opening with sliding tarpaulin curtain)
- Handrails: Portable handrails for the opening side
- Floor Finish: Steel grating floor with secondary containment
- Drainage: Drain point with valves for drain containment
- Forklift Pocket: Forklift pocket on base frame
- Pocket: Paper pocket on inside 2nos
- Paint Finish: Paint fish with orange RAL 2004 and white
- Others: Relative sticker on opening side
SAFETY SHOWER, SKID MOUNTED
Features & Specification
- Capacity: 700Liter
- Dimensions: 1,200 x 1,200 x 3,3250mm
- Tare Weight: 500 kgs
- Pay Load: 700 kgs.
- Maximum Gross Weigh: 1,200 kgs.
